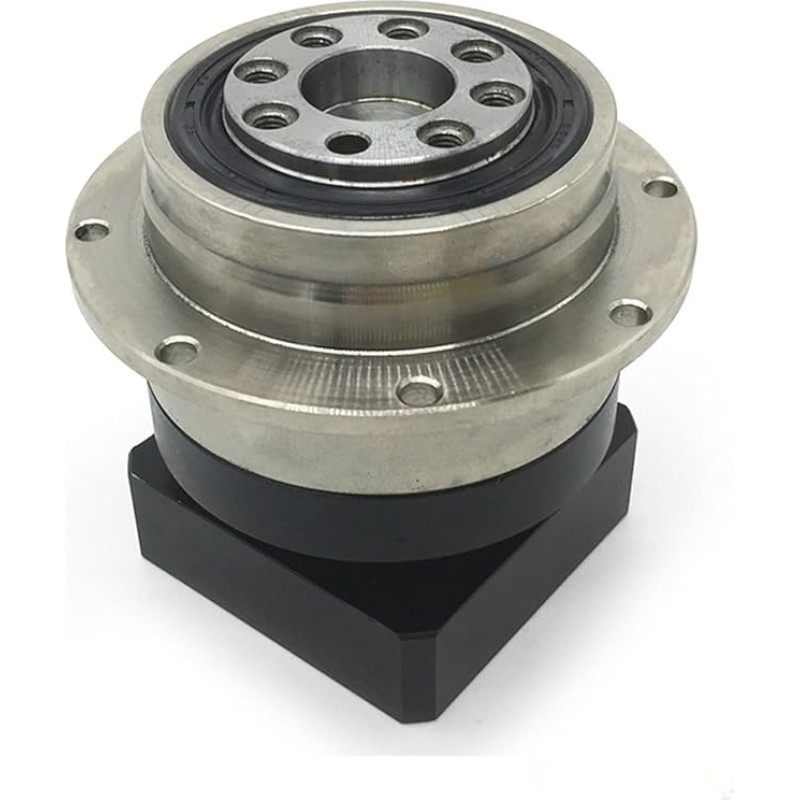

Disc Flange Output Planetary Gear, Spur Gear, 60 mm, 400 W, Servo, Nema23, Stepper Motor, Gear for Manipulator (Size : Ratio 10 to 1, Colour: 6.35 mm Input)
14-day right of withdrawal Warranty

Disc Flange Output Planetary Gear, Spur Gear, 60 mm, 400 W, Servo, Nema23, Stepper Motor, Gear for Manipulator (Size : Ratio 10 to 1, Colour: 6.35 mm Input)

Availability: 0
ID: 969535
Product Code: ANEB0CS9L2D4GT
444.37€
(Ex Tax: 367.25€)
Delivery by

DPD delivery Omniva delivery Smartpost delivery FedEx delivery Venipak delivery

Payment options

Pay with Swedbank Pay with Apple Pay Pay with Google Pay Pay with Visa Pay with Mastercard

Pay in installments with ESTO
Description
Related products
Description
1. The planetary gear is a mechanical transmission component in a motion control system that connects a servo motor to the application load. 2.Easy to use: professional design and reasonable structure, easy to replace and use 3.Durable The gear motor is made of high quality material, durable and has a long service life. 4. The scope of application: the gear motor is suitable for intelligent robots, intelligent manipulators, intelligent furniture, intelligent focusing system, miniature head and so on. › See more product details; Product description Box contents: 1 x planetary gearbox. 1 x key. 4 x installation screws. Gear parameters: Model: PLX060 Speed ratio: 1 level (L1): 4:1 / 5:1 / 7:1 / 10:1 2 level (L2): 20:1 / 25:1 / 35:1 / 40:1 / 50:1 / 70:1 / 100:1. Product Type: Spur GearPlanetary Gear Input size: 6.35mm/8mm/11mm/14mm Body length: 105.5 (L1) / 135 mm (L2). Game accuracy: less than 3 arcmin (L1) / less than 5 arcmin (L2). Transmission type: spur gear Rated torque: 40 Nm (4:1 / 5:1 / 7:1 / 20:1 / 25:1 / 35:1 / 40:1 / 50:1/ 70:1) ; 18 Nm (10:1 / 100:1). Maximum torque: 1.5* rated torque Emergency braking torque: 2.5* rated torque. Maximum radial force: 680 N Maximum axial force: 340 N Torque stiffness: 13 Nm/arc min. Rated life: 20,000 hours. Maximum input speed: 6000 RPM Rated input speed: 3300-5500 RPM Transmission efficiency: More than 95% (L1) / More than 90% (L2) Noise: less than 58 dB. Protection level: IP65. Certification: CE; Product description Box contents: 1 x planetary gearbox. 1 x key. 4 x installation screws. Gear parameters: Model: PLX060 Speed ratio: 1 level (L1): 4:1 / 5:1 / 7:1 / 10:1 2 level (L2): 20:1 / 25:1 / 35:1 / 40:1 / 50:1 / 70:1 / 100:1. Product Type: Spur GearPlanetary Gear Input size: 6.35mm/8mm/11mm/14mm Body length: 105.5 (L1) / 135 mm (L2). Game accuracy: less than 3 arcmin (L1) / less than 5 arcmin (L2). Transmission type: spur gear Rated torque: 40 Nm (4:1 / 5:1 / 7:1 / 20:1 / 25:1 / 35:1 / 40:1 / 50:1/ 70:1) ; 18 Nm (10:1 / 100:1). Maximum torque: 1.5* rated torque Emergency braking torque: 2.5* rated torque. Maximum radial force: 680 N Maximum axial force: 340 N Torque stiffness: 13 Nm/arc min. Rated life: 20,000 hours. Maximum input speed: 6000 RPM Rated input speed: 3300-5500 RPM Transmission efficiency: More than 95% (L1) / More than 90% (L2) Noise: less than 58 dB. Protection level: IP65. Certification: CE; Box contents: 1 x planetary gearbox. 1 x key. 4 x installation screws. Gear parameters: Model: PLX060 Speed ratio: 1 level (L1): 4:1 / 5:1 / 7:1 / 10:1 2 level (L2): 20:1 / 25:1 / 35:1 / 40:1 / 50:1 / 70:1 / 100:1. Product Type: Spur GearPlanetary Gear Input size: 6.35mm/8mm/11mm/14mm Body length: 105.5 (L1) / 135 mm (L2). Game accuracy: less than 3 arcmin (L1) / less than 5 arcmin (L2). Transmission type: spur gear Rated torque: 40 Nm (4:1 / 5:1 / 7:1 / 20:1 / 25:1 / 35:1 / 40:1 / 50:1/ 70:1) ; 18 Nm (10:1 / 100:1). Maximum torque: 1.5* rated torque Emergency braking torque: 2.5* rated torque. Maximum radial force: 680 N Maximum axial force: 340 N Torque stiffness: 13 Nm/arc min. Rated life: 20,000 hours. Maximum input speed: 6000 RPM Rated input speed: 3300-5500 RPM Transmission efficiency: More than 95% (L1) / More than 90% (L2) Noise: less than 58 dB. Protection level: IP65. Certification: CE
